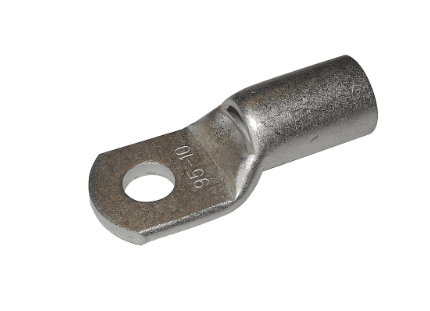

Cable Lug 95mm 8mm Stud
Carroll copper lugs are manufactured from fully annealed, 99.95% pure high conductivity copper and are electro-tin plated for superior corrosion resistance. Carroll lugs also include crimp lines for improved accuracy during installation. Available with 6mm, 8mm or 10mm hole.
Bell mouth lugs are specifically designed for use with fine stranded flexible cables because flexible cables tend to “splay” when the cable insulation has been removed. Bell mouth cable lugs have a flared entry to make it easier to insert flexible cable. Bell mouth lugs are crimped using the same crimping tools and can also be used with stranded cable.
Features:
– 99.95% pure electrolytic copper
– Electrical conductivity 99.7% IACS
– Oxygen content 30 ppm max
– Fully annealed
– 5-10 Micron, 99.9% pure tin plating
– Operating temperature range of -55 to 155°C
– Conformant standards: AS/NZS 4325 – Part 1.
– Lug sizes 10 to 630mm2 are supplied bell mouth as standard
– All other sizes are straight barrel type
– Printed crimp line marks for added guidance
– Inspection window to assist with cable insertion
