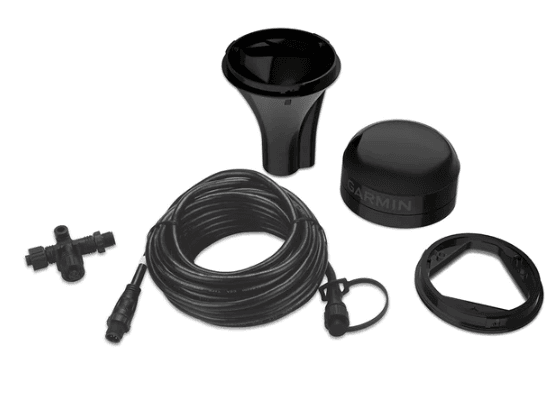

Garmin GPS 24xd Antenna


The highly accurate Garmin GPS 24xd Antenna position antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds.


Garmin GPS 24xd Antenna

GPS 24xd NMEA 2000 from Garmin offers Multi Constellation compatibility. Designed to work globally, the 24 xd works off GPS, Galileo, GLONASS and BeiDou satellite systems and combines Multi-SBAS (Satellite Based Augmentation System)providing you with the most accurate data, more quickly than ever before. Delivering important information such as position, heading, & speed up to 10 times faster to your multifunction display (MFD) unit or other instruments & displays. Built with a 32 channel receiver that’s WAAS capable, you will get an accurate position reading regardless of speed within 1m (3.28ft.) New to the 24XD Antenna is Magnetic Heading sensors which provide accuracy to 3 degrees – stabilizing charts, radar overlay and MARPA even at slow speeds!

Designed with the elements in mind, the Garmin 24XD is waterproof to IPX7 standards and can be easily pole mounted, flush mounted and can also be mounted on the underside of many fiberglass decks providing you with a number of options that can best suit your needs. Ease of installation & accuracy in mind, the NMEA2000 version of the 24XD is plug and play into your existing NMEA2000 setup with the included T connector and drop cable and will also eliminate position skipping at trolling speed and provides you quick & accurate true heading information, helpful most when coming out of turns. To obtain the quickest & most accurate data with a GPS receiver, the Garmin 24XD is the perfect match for your multifunction display.

** NMEA 2000 Network Required

Additional information

Weight 0.97 kg
Dimensions 16 × 16 × 16 cm

White, Black
