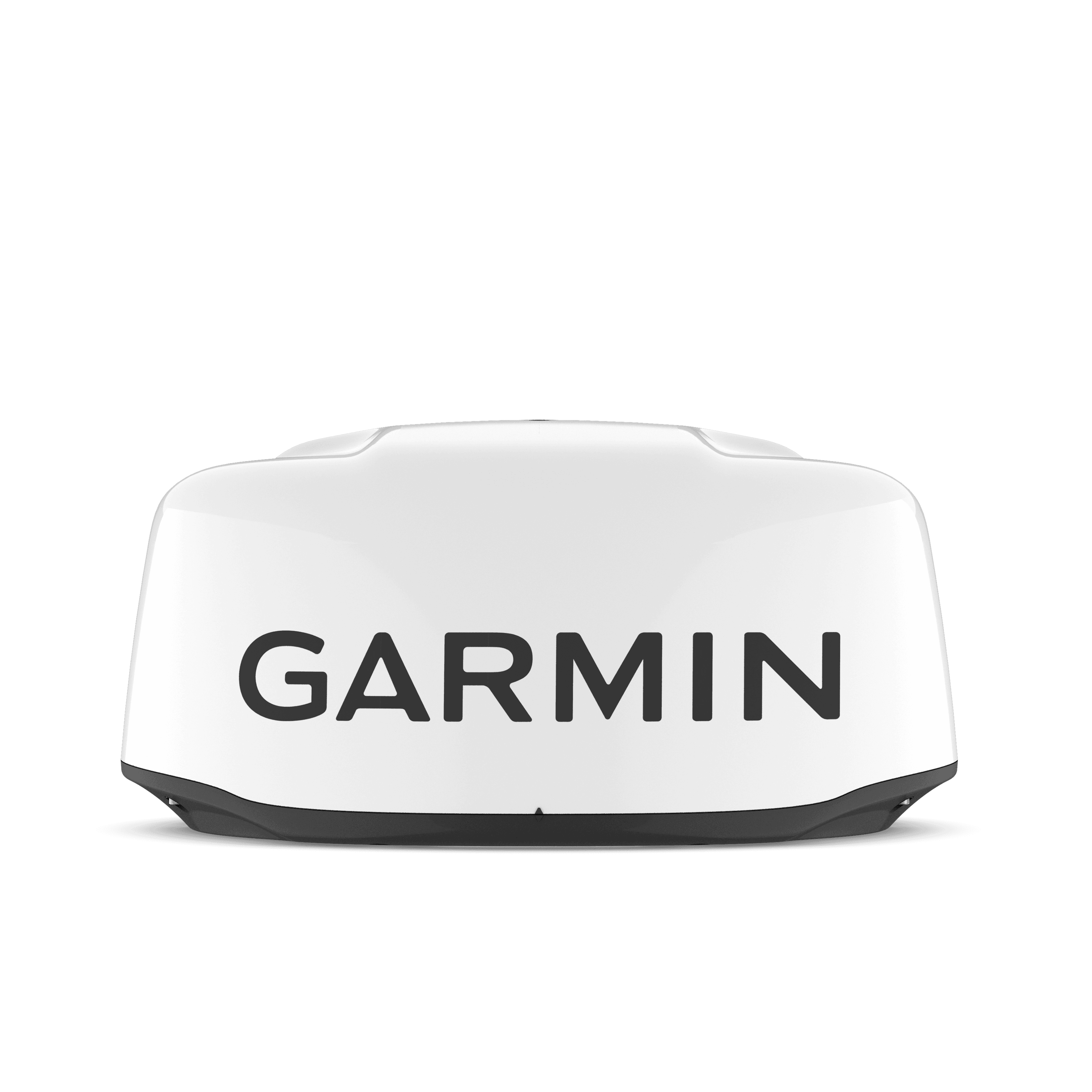

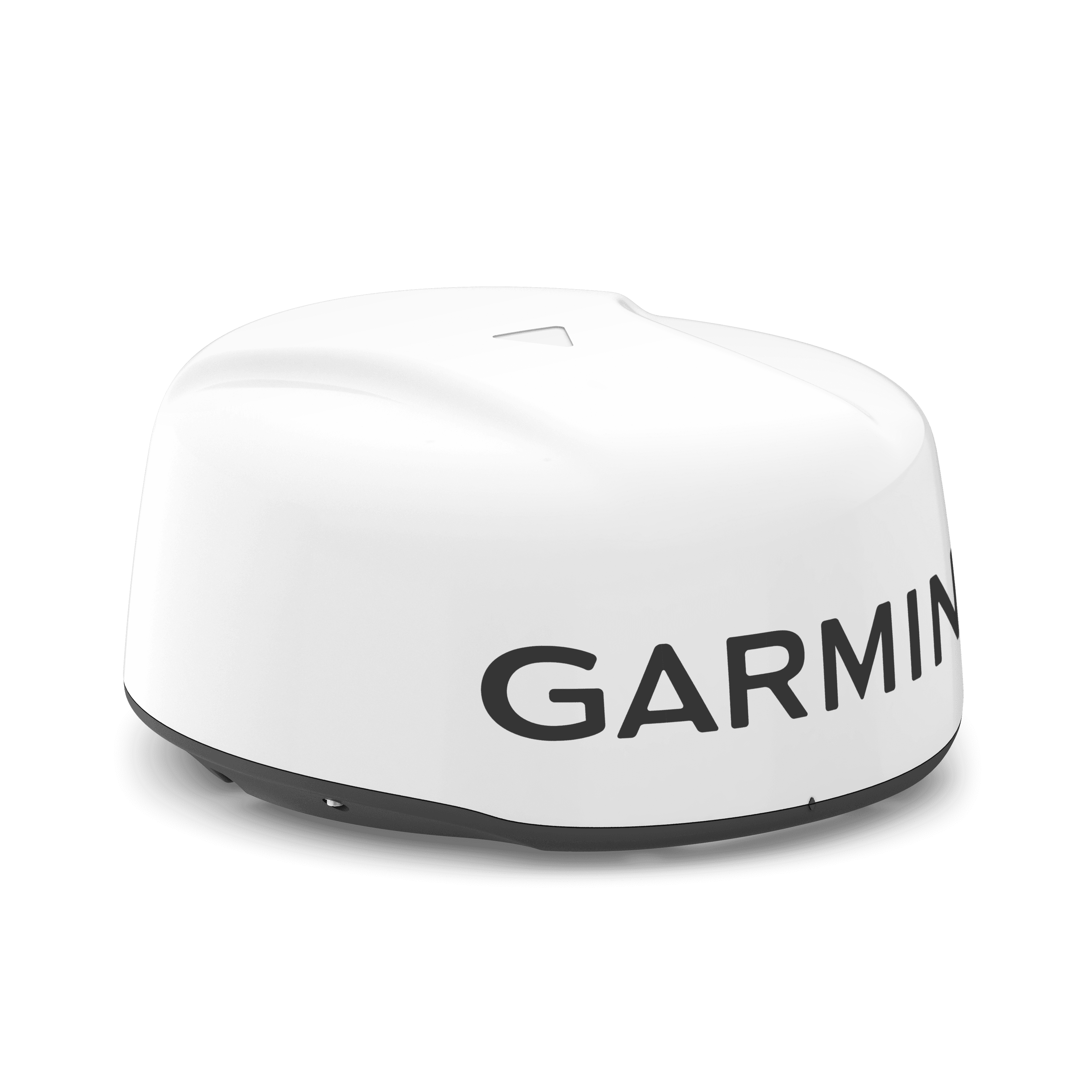

GMR xHD3 Radome
GET ROBUST MAGNETRON SCANNING IN A COMPACT GARMIN DOME RADAR
Loaded with advanced features typically found on open arrays, these powerful 18″ and 24″ dome radars offer superior traffic, obstacle and weather detection for peace of mind on the water.
NEW SCAN AVERAGING TECHNOLOGY
A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.
ANGULAR TARGET-SIZE ADJUSTMENT
Pulse expansion and angular target-size processing techniques optimise on-screen object shapes for better interpretation at all range scales.
FASTER SCANNING ANTENNA
Rotation speeds up to 60 rpm improve the redraw rate for faster target updates.
TRUE ECHO TRAILS
A historical “trail” of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.
DUAL RANGE WITH OVERLAY
A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.
DYNAMIC AUTO GAIN
Gain automatically adjusts levels to optimum settings for harbours, near shore and offshore in open waters.
RADAR OVERLAY
See overlaid images on your chartplotter’s map screen (with appropriate sensors, sold separately).
HIGH-RESOLUTION RADAR
Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.
DUAL-RADAR SUPPORT
This provides redundancy and allows each display unit to pull data from different sources.
DYNAMIC SEA FILTER
AUTO BIRD GAIN
MARPA TARGET TRACKING
Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).
GUARD ZONE
Set the safety zone, and receive an alarm when an object enters the zone.
RANGE AND BEARING CUES
Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.
All Garmin radars are designed to be easy to install and easy to use. There are no complex user settings to adjust; just install your GMR Radar and start using it. Better yet why not contact us at QME to install it for you correctly, the first time.
