OceanLED X Series


Whether cruising or fishing the OceanLED X Series gives stunning performance, allowing you to enjoy more time on the water with family and friends.


OceanLED X Series

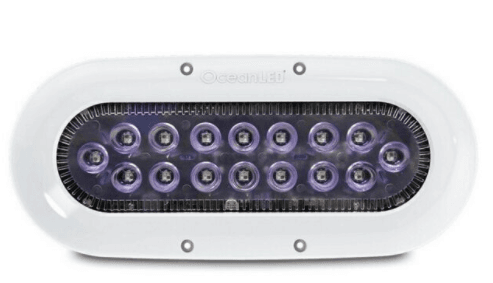

The OceanLED X Series combines brightness with affordability. Whether cruising or fishing, the X16 gives stunning performance allowing you to enjoy more time on the water with family and friends.

The X16 packs a mighty 5,800 fixture Lumens into its low profile design and utilises focused optics to produce a 60° circular beam from each LED providing great water penetration, illuminating a large area.

Choose either a single colour version from either Midnight Blue or Ultra White or pick our Colours option where you can select any colour you want from the RGBW spectrum. You can toggle between the colours or with our DMX controller and smartphone app, your choice is virtually limitless.

Looking to catch more fish? Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.


  • 60° Beam Angle – A wide-angled, focused beam lights up a large area of the water
  • Compact and simple design – Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light
  • Simple to install – Installation needs only a small, 12mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.
  • Easy to clean – Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours of scrubbing each time you use it
  • Fish-Strobe Mode – Exceptionally bright, randomised strobing of the light is proven to attract more fish and catch more bait
  • Active Thermal Control – ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn o the fixture completely.
  • Colours Control – Colours models are compatible with OceanDMX for full control, interactivity and colour customisation. Alternatively, cycle smoothly between red, green, blue and white with a standard DC switch


BLA Code Description Lumens Fixture Lumens Volts Current Approx. Light Penetration             (Avg Water Quality) Approx. Light Penetration (perfect water quality)
12V 24V

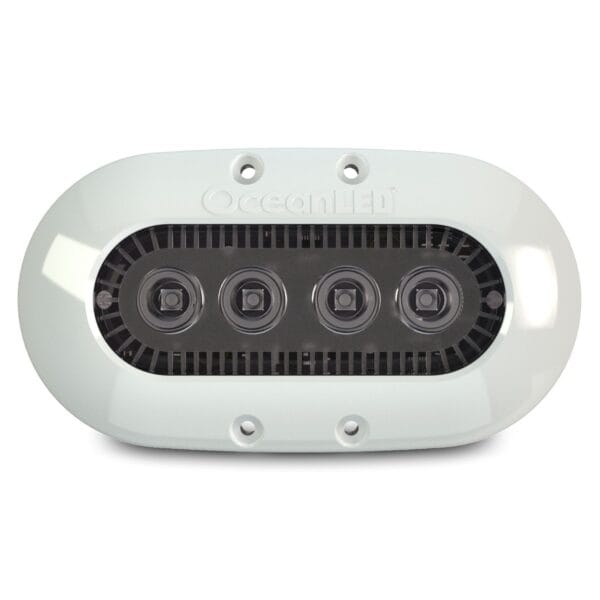

125330 X4 Ultra White 1450 1500 9-32V 0.8A 0.4A 6m (20ft) up to 13m + (40ft)
125331 x4 Mightnight Blue 1450 1500 9-32V 0.8A 0.4A 6m (20ft) up to 13m + (40ft)

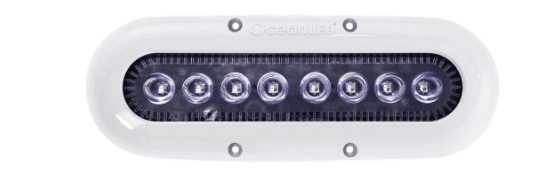

125332 X8 Ultra White 2900 2300 9-32V 1.65A 0.75A 8mm (26 ft) up to 21m + (72ft)
125333 X8 Midnight Blue 2900 2300 9-32V 1.65A 1.65A 8mm (26 ft) up to 30m + (100ft)
125335 X16 Ultra White 5800 4500 9-32V 3.2A 1.5A 12mm (40ft) up to 21m + (100ft)
125336 X16 Midnight Blue 5800 4500 9-32V 3.2A 1.5A 12mm (40ft) up to 21m + (100ft)


QME are Proud to be an Authorised BLA Stockist and Installer.

Additional information

Weight 0.34 kg
Dimensions 15.5 × 14 × 7.5 cm
X-Series Models

X4, X8, X16

Colour Options

Midnight Blue, Ultra White
