Zipwake Mini Controller
The smart Zipwake Mini Controller brings together the best of two worlds: clean dashboard designs and easy trim control. All so you can get the most out of every day on the water – whatever the conditions.
ANY WEATHER
Rain, wind and waves – when the weather doesn’t cooperate, touchscreens can be difficult to use. With the Mini Controller, there’s no need to stay home.

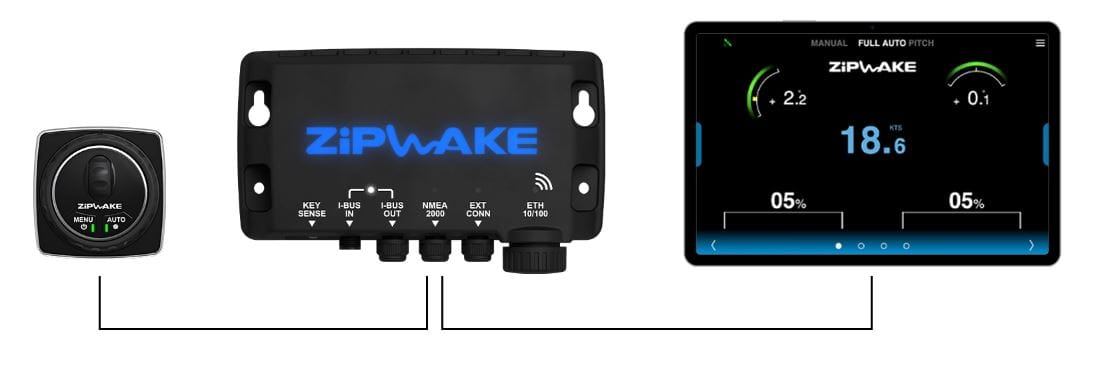

Small and discreet, the Mini Controller is the perfect complement to any Zipwake system equipped with the Integrator Module and touchscreen MFDs. It acts as an “eyes-free” remote control for the Zipwake App, giving you total system control for optimum trim without having to reach for a touchscreen.
USER-FRIENDLY AND INTUITIVE
You can either let the Zipwake system work automatically or make manual adjustments with the user-friendly and intuitive control wheels.
EASY TO INSTALL – ANYWHERE
The rugged and waterproof Mini Controller can be surface mounted or flush mounted within reach anywhere – and in any position – from the cockpit of a day cruiser or up on the flybridge. For even more convenience, the Mini Controller’s Key Sense can be connected to the engine ignition for automatic system power-on.
SHORT FACTS
- Fully automatic
- User-friendly and intuitive controls
- Multifunction buttons
- Auto power on/off via ignition key sense
- Surface and flush mount
- Waterproof design
- Up to 3 Mini Controllers in the system
- Simplifies manual adjustments
INTERFACES
- I-BUS IN (CAN bus)
- I-BUS OUT (CAN bus)
- Key Sense
SPECIFICATIONS
- MODEL: MC
- INDICATORS: RGB LEDS
- SUPPLY VOLTAGE: 12 – 32 V DC
- POWER CONSUMPTION: 2 W MAX
- OPERATING TEMPERATURE: -20° TO +80°C (-4° TO +176°F)
- STORAGE TEMPERATURE: -40° TO +90°C (-40° TO +194°F)
- WATERPROOF RATING: IP67
- COMPASS SAFE DISTANCE: 0.5 M (1.7 FT)
