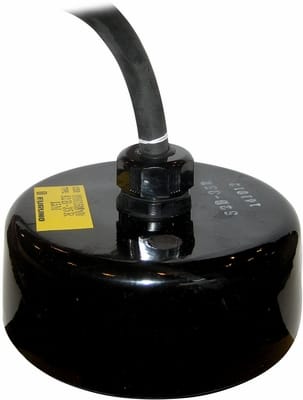

Furuno 82B 35R Transducer
Furuno 82B 35R Transducer with wide bandwidth Frequency, designed to be used with the FCV295, FCV292*, FCV1100, FCV1150, FCV1200, DFF3 and BBFF3 Units.
Features
- 65kHz – 110kHz frequency
- 2kW Power
- When used with the FCV1100 or FCV1200 Sensitivity remains high even if Frequency is shifter +/- 10% for interference adjustment
- Beam angle becomes sharper at higher frequencies:
- 68kHz – 12.5°
- 88kHz – 9.6°
- 107kHz – 7.7°
- Rugged FRP construction – tank mounted
- Supplied with 15m Cable, no connector – can be extended to 30m
- Compatible with 88B-10 & 100B-10R Tank
*Only for use at 88kHz with FCV292

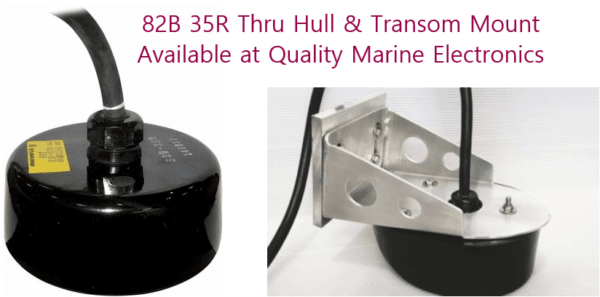

Purchase the 82B 35R as a Thu Hull model or with a Transom Mount Fairing.
Contact us at QME to install it correctly the first time.
