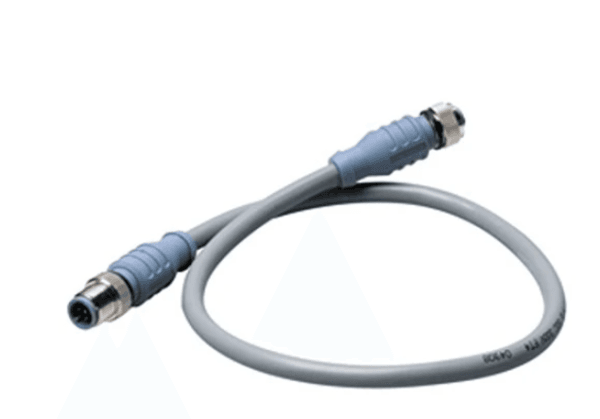

Maretron Micro N2K Cable
The Double Ended Cable are used for trunk or drop lines and make for a secure connection and simple timesaving installation.
The connectors are keyed for error-free connection.
Waterproof for continued operation even while submerged in the bilge.
Features:
- Rugged, IP68 rated connectors for
- continued connection integrity in
- marine environment
- Various cable lengths to match installation requirements
- All cables are Grey
Specifications:
MECHANICAL:
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Head Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 1.06”
ELECTRICAL:
Current Rating: 9.0 Amps
Voltage Rating: 300 V CABLE
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: Power 2×15 (1.45mm) AWG, 2×18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
Shielding (3-Levels): Braid (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL:
Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40°C to 80°C (-40°F to 176°F)
APPROVALS:
(Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C,AWM I/II A/B 80C 300V FT4
NMEA: NMEA 200
IEC: IEC 61162-3
