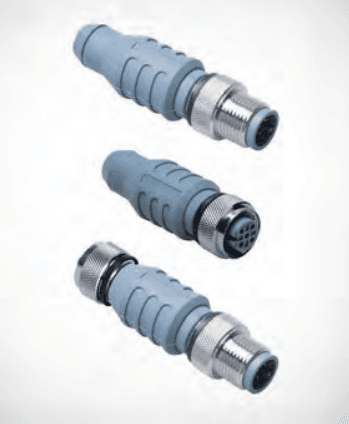

Maretron Micro Termination Resistors
Two Micro Termination Resistors are required on every NMEA 2000 network, one on each end of the trunk line.
Normally, a male termination is used since male pins tend to point back to the power source.
In cases where the gender is reversed, a female terminator may be required.
The inline terminator is used where the network is terminated at a product,
for example a GPS or weather station at the top of a mast
Features:
- Screw Terminal connector for Positive Connections,
- Termination resistors are used to terminate both ends of the trunk line

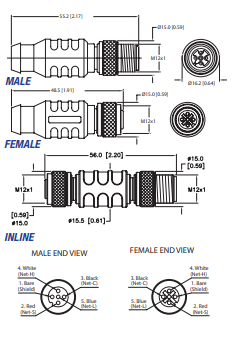

Specifications:
MECHANICAL:
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray – TR-CM, TR-CF
Thermoplastic PUR/Black – IT-CM-CF
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray – TR-CM, TR-CF
Thermoplastic PUR/Black – IT-CM-CF
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
ELECTRICAL:
Rated Voltage: 10-30 V DC
Internal Resistor: 120 Ohms (1/2 W) – TR-CM, TR-CF
121 Ohms (1/4 W) – IT-CM-CF
ENVIRONMENTAL:
Protection Class: IEC IP68, NEMA 1,3,4,6P
APPROVALS:
NMEA: NMEA 2000® APPROVED
IEC: IEC 61162-3
