RAM Swing Arm Mount


RAM 6″/152mm Swing Arm Mount for Fishfinders and Plotters.

Available in Horizontal and Vertical Mounting Bases.

RAM Swing Arm Mount

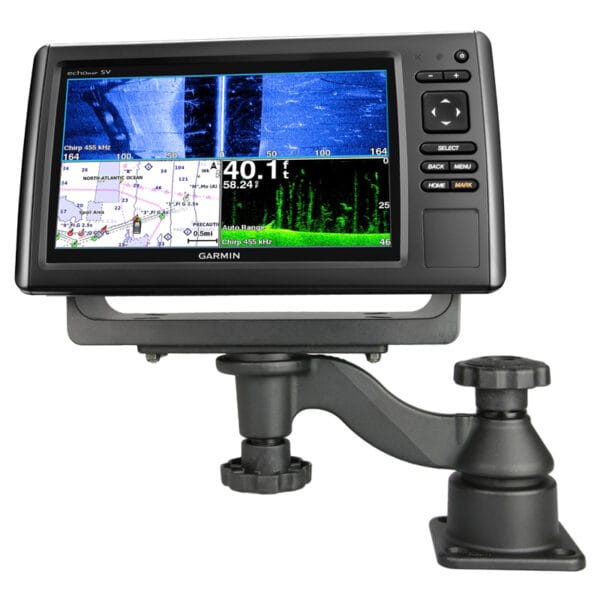

The RAM single swing arm MB-35 & MB-38 mount consists of 152mm long bent swing arm on a mounting base. At the device mounting end of the mount is a rectangular 158 x 50mm plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the centre of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Available in a Horizontal and Vertical Mounting Base.

Horizontal Dimensions: SKU- 109004

  • Centre of knob to centre of ball socket: 152.40mm
  • Overall length: 273.05mm
  • Overall height: 142.24mm
  • Height from base to top of knob: 124.71mm

Vertical Dimensions: SKU- 109002

  • Overall length: 290.51mm
  • Overall height: 214.63mm
  • Centre of knob to centre of ball socket: 152.4mm


QME are Proud to be an Authorised BLA Stockist and Installer.

Additional information

Weight N/A
Dimensions N/A
Mounting Base

Horizontal, Vertical
