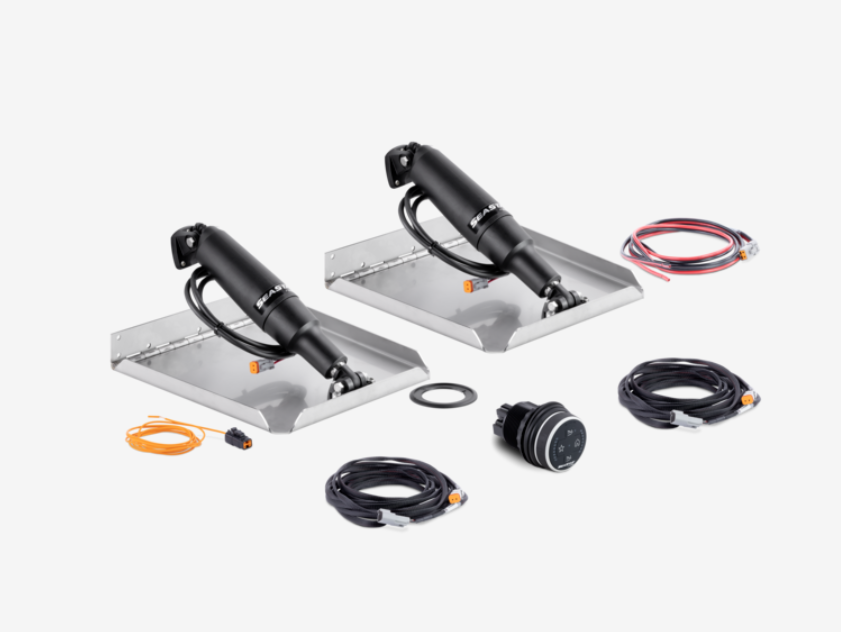

Seastar Edge Mount Trim Tab Kit 12X12
Designed for use where transom height limits standard
trim tab mounting, the Dometic edge mount trim tab’s
have been developed to ensure there is a solution
available for all vessels.
Dial Controller:
- Bow Down Button – quickly move port and starboard tabs to desired position
2. Power Indicator – indicates there is power to the system. LED will indicate if there is an error
3. Favourite Button – hold for 3 seconds to save desired tab position
4. Auto Brightness – will sense ambient light & adjust brightness
5 .Performance Technology – LED’s indicate position of Trim Tabs
6. Home Button – quickly move both tabs to the home position
7. Intuitive Technology – turn smart dial to quickly level your boat
8. Bow Up Button – quickly move port and starboard tabs to
desired position
Actuator:
- Sealed and potted wiring
2. High torque DC motor
3. Rugged & stylish housing, simple 2 piece design minimises possible water ingress points
4. Planetary gearbox provides ultra efficient and reliable high load transfer and quiet operation.
5. Dual housing seals to prevent leakage
6. Free wheeling ball screw technology
7. Rear seal in protected bushing area
8. Wiper removes particles from shaft and protects rear seal
