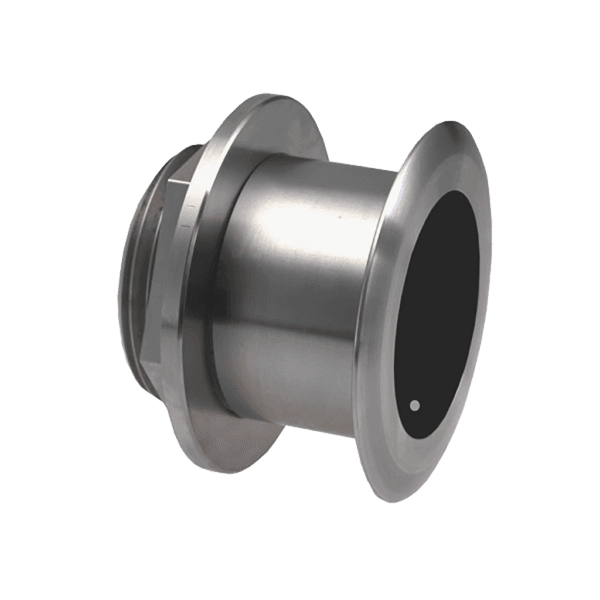

SS164 Dual Frequency M and M Airmar Transducer


Low-profile tilted through-hull 1kW 50/200kHz fishfinder transducer. As part of Airmar’s Mix & Match Transducer range you can purchase this to suit your Garmin, Furuno or Simrad set up.


SS164 Dual Frequency M and M Airmar Transducer

Airmar has taken our innovative Tilted Element™ technology to a higher power with the Dual Frequency SS164 50/200kHz Transducer. The ceramic arrays are tilted inside the housing giving you a perfect vertical beam with maximum energy on what is directly below your boat. To compensate for your boats deadrise, the high-performance ceramic elements are tilted inside the housing. As a result this aims the beam straight toward the bottom, resulting in stronger echo returns and more accurate depth readings.

The SS164 1kW transducer has been engineered for center-console and trailered boats. Especially those that cannot install a thru-hull with a High-Performance Fairing. The low-profile housing protrudes less than 6.35 mm outside your hull, resulting in excellent performance at speeds up to 30 knots.

Suitable for deep-water bottom and structure fishing up to 500 m.

Recommended for Boat Size: 8 m to 11 m (25’ to 35’).

Refer to the images for detail on the Beamwidth, Beam Diameter and Depth.

0° Tilt Angle suited to a hull deadrise of 0° to 7°.

Mix and Match Brand Fitment:

  • Garmin
  • Furuno
  • Simrad

Additional information

Weight 5 kg
Dimensions 27 × 26 × 20 cm

Garmin, Furuno, Simrad
