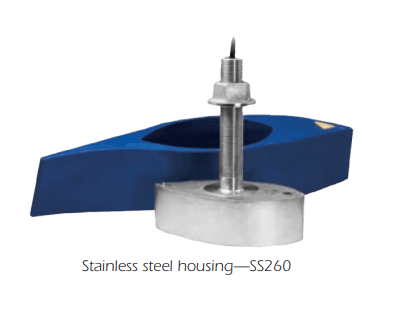

SS260 Traditional CW Airmar Transducer


The SS260 Traditional CW Airmar Transducer is Airmars’ best performing, stainless-steel, thru-hull stem for 1 kW echosounders. The SS260’s narrow beam gives crisp image detail especially suited for fishing shelves, intricate bottom structures, and wrecks.

As part of Airmar’s Mix and Match Transducer range you can purchase this to suit your Garmin or Furuno set up.


SS260 Traditional CW Airmar Transducer

The Airmar SS260 Traditional/CW will enhance fish detection on virtually all of today’s fish finders.

Recommended for sportfishing boats above 9 m (30’) and small to mid-size commercial fishing boats.

Its construction utilizes separate 50 kHz and 200 kHz elements for unparalleled deep-water performance and unmatched bottom and water-column detail.

The narrow, 6° beam 200 kHz ceramic will give you excellent resolution and crisp image detail needed for bottom fishing. In other words, the low ringing is perfect for finding fish holding tight to the bottom and other structures. The seven-element 50 kHz array has a wider 19° beam for deeper blue-water fishing. The outcome at both frequencies is excellent resolution and crisp image detail.

When installed with the included High Speed Fairing Block, the SS260 Traditional/CW Transducer can be fitted on a Hull with a Deadrise of 20°.

Refer to the images for detail on the Beamwidth, Beam Diameter and Depth.

Mix & Match Brand Fitment:

  • Garmin 8-Pin; and
  • Furuno 10-Pin.

Additional information

Weight N/A
Dimensions N/A
Brand Fitment

Garmin 8-Pin, Furuno 10-Pin
