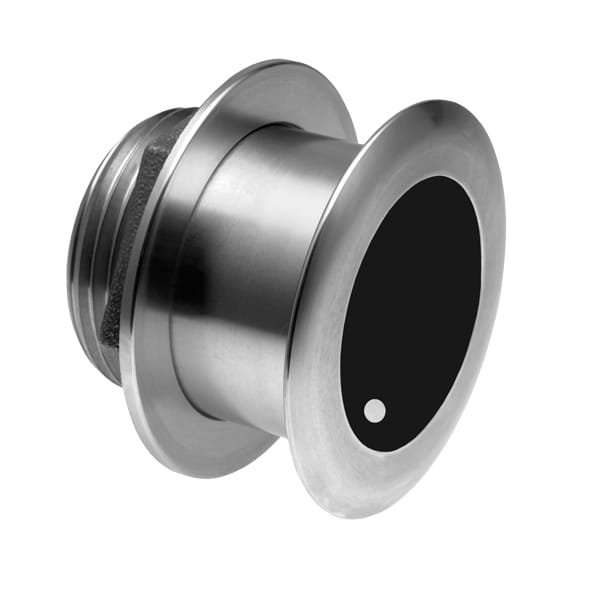

SS264W MM Airmar Transducer 50 kHz

$2,090.00

The 50 kHz SS264w Tilted Element™ Thru-Hull 1 kW Airmar Transducer is an integral part of the SS264N Pair. As part of Airmar’s Mix & Match Transducer range you can purchase this to suit your Garmin, Furuno or Simrad set up.

Transducers Sold Separately.

Brand:

SS264W MM Airmar Transducer 50 kHz

The SS264W 50kHz Airmar Transducer has been designed as an integral unit to the SS264N Pair.

Airmar has taken the proven and legendary B260 and split it apart into a pair of low-profile transducers. Called the SS264N Pair these transducers are perfect for fast, center-console and tailored, sportfishing boats, or any vessel that cannot have a thru-hull with a High-Performance Fairing. With one handling 50kHz wide and the other running at 200kHz narrow you can reach the same performance without a fairing.

The narrow-beam 200 kHz transducer will give you excellent resolution and crisp image detail needed for bottom fishing. Consequently, the low ringing of this transducer is perfect for finding fish holding tight to the bottom and other structure. The seven element 50 kHz transducer is the same as in the SS264W Airmar Transducer and is best for deep-water sounding down to 914 m (3,000’).

To compensate for your boats deadrise, the high-performance ceramic elements are tilted inside the housing. As a result this aims the beams straight toward the bottom, resulting in stronger echo returns and more accurate depth readings.

Refer to the images for detail on the Beamwidth, Beam Diameter and Depth.

Suitable for Metal Hull Types.

Tilt Angle Variations:

  • 20° tilted for 16° to 24° hull deadrise
  • 12° tilted for 8° to 15° hull deadrise

Mix and Match Brand Fitment:

  • Garmin
  • Furuno
  • Simrad

Transducers Sold Separately.

Contact us at QME to install it for you correctly, the first time.

Additional information

Weight5 kg
Dimensions29 × 20 × 27 cm
Tilt Angle

12°, 20°

Brand Fitment

Garmin, Furuno, Simrad
