Furuno 82B 35R Transducer

For serious Fishermen that want the best deep water picture!

Available in Thru Hull or with a Transom Mount Fairing.

Request a Quote

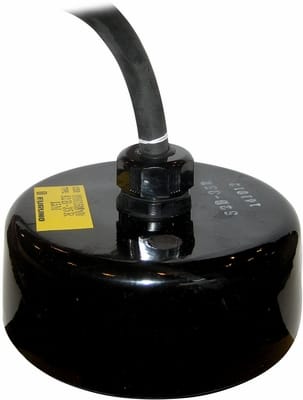

Furuno 82B 35R Transducer

Furuno 82B 35R Transducer with wide bandwidth Frequency, designed to be used with the FCV295, FCV292*, FCV1100, FCV1150, FCV1200, DFF3 and BBFF3 Units.


  • 65kHz – 110kHz frequency
  • 2kW Power
  • When used with the FCV1100 or FCV1200 Sensitivity remains high even if Frequency is shifter +/- 10% for interference adjustment
  • Beam angle becomes sharper at higher frequencies:
    • 68kHz – 12.5°
    • 88kHz – 9.6°
    • 107kHz – 7.7°
  • Rugged FRP construction – tank mounted
  • Supplied with 15m Cable, no connector – can be extended to 30m
  • Compatible with 88B-10 & 100B-10R Tank

*Only for use at 88kHz with FCV292

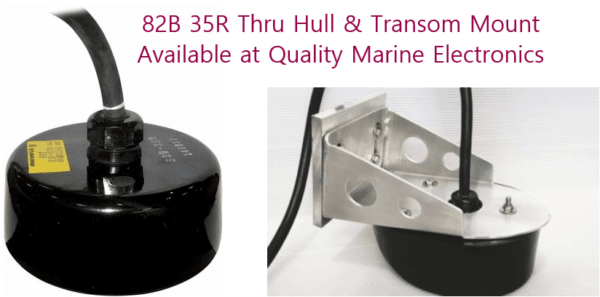

Purchase the 82B 35R as a Thu Hull model or with a Transom Mount Fairing.


Contact us at QME to install it correctly the first time.

QME are Winners of the Furuno Install Dealer of the Year Award for 4 years running – 2016 to 2019.

Additional information

Weight N/A
Dimensions N/A
Installation Option

Thru Hull, Transom Mount
