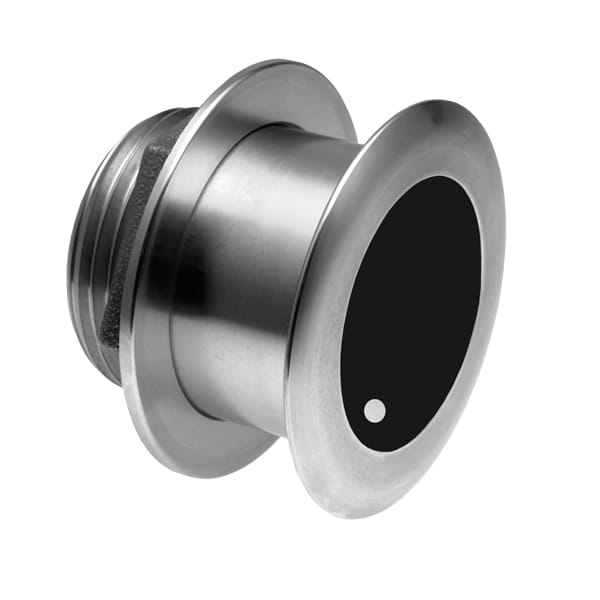

SS175L Airmar 1KW CHIRP Transducer
There are many benefits of the AIRMAR SS175L Chirp-ready 1KW Transducer that combine together to provide you with amazing detail even on high speed boats.
CHIRP Transducers enable bottom detection down to 3,000m with 5 to 10 times greater detail. Consequently, the resolution is so precise it’s possible to distinguish between individual baitfish, gamefish, and underwater structures.
One broadband transducer covers up to 80kHz of bandwidth so that you have greater opportunities for detecting fish in the water column. Additionally, with amazing detail you will be able to recognise haloclines and thermoclines.
Experience improved signal to noise ratio so you can find fish and track bottom at high boat speeds.
The Airmar SS175L CHIRPS across the following bandwidth: Low Frequency 40 kHz to 60 kHz. As well as featuring a 32° to 21° beamwidth, experience an outstanding bottom coverage extending to 1110ft at a depth of 2000ft.

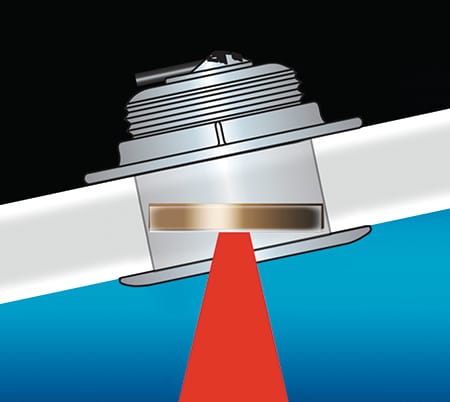

The transducer’s ceramic elements are permanently tilted inside the housing to ensure the beam is aimed straight down. This results in stronger echo returns and more accurate depth readings.
Designed for smaller boats above 25 feet (8 m).
Suitable for Metal Hull Types.
Tilt Angle Variations:
- 20° tilted for 16° to 24° hull deadrise
- 0° tilted for 0° to 7° hull deadrise
